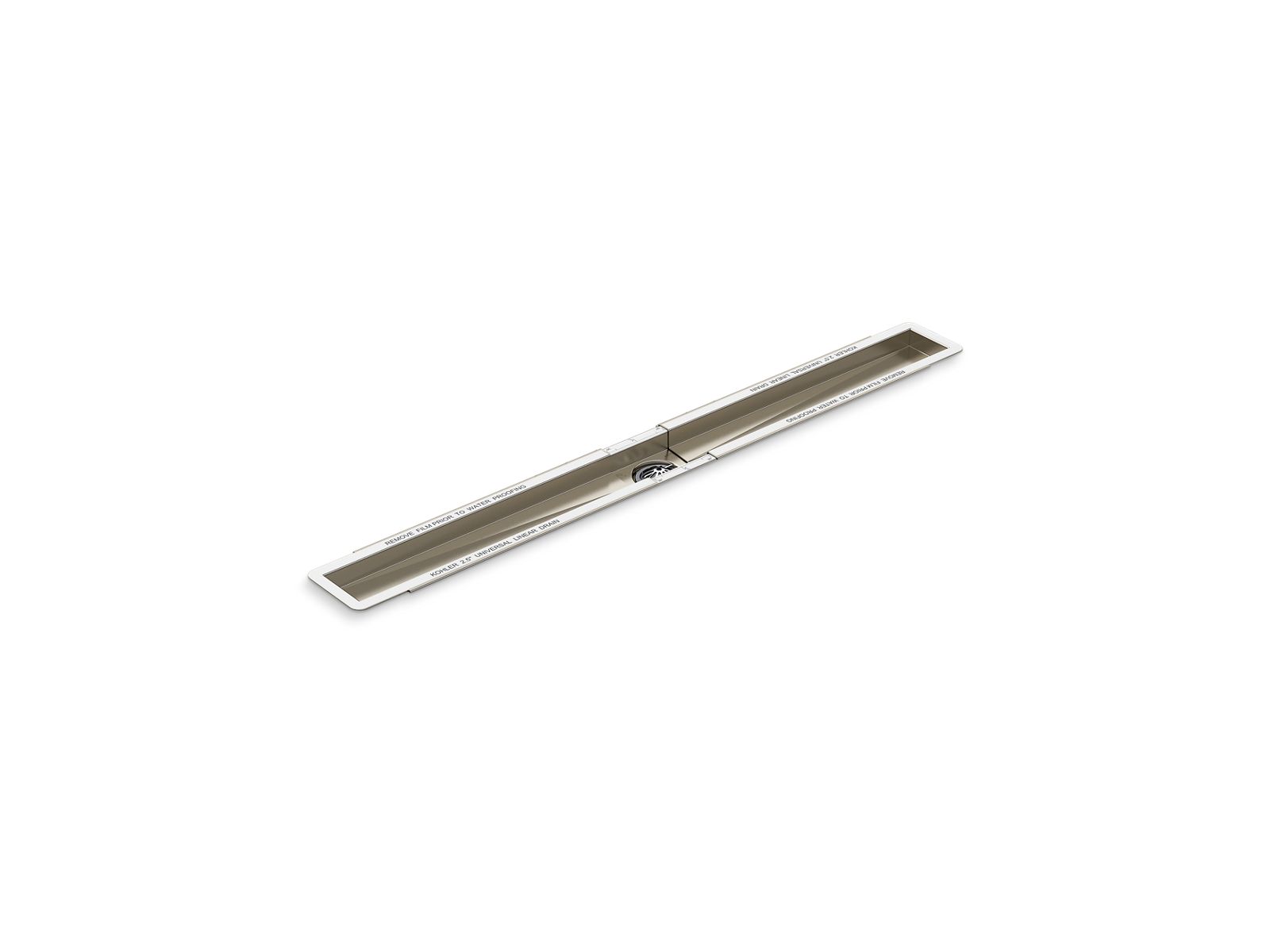

Kohler 80646-NA 2-1/2" x 36"-60" linear drain channel
Incorporate this KOHLER® easy-to-install, linear shower drain channel into your next contemporary shower project for a sleek, minimalist look with maximum function. This innovative drain solution delivers the best-in-class quality you’ve come to expect from KOHLER®, along with customizable channel length and outlet location, premium hair strainer, and durable, easy-to-clean electropolished stainless steel base. Designed...
Incorporate this KOHLER® easy-to-install, linear shower drain channel into your next contemporary shower project for a sleek, minimalist look with maximum function. This innovative drain solution delivers the best-in-class quality you’ve come to expect from KOHLER®, along with customizable channel length and outlet location, premium hair strainer, and durable, easy-to-clean electropolished stainless steel base. Designed for single-slope tiled shower floors and flush-to-wall placements, the drain channel is effortless to size, adjust, and tile against in your home or commercial shower installation.
Features
- Flush-to-wall design (recommended) provides a clean aesthetic; can also be installed within shower floor interior
- Extend channel length from 36" to 60" for easier specification and precise wall-to-wall installation (if desired)
- Channel is pitched to outlet for easy cleaning and complete drainage; handles up to 15 gpm (56.8 lpm) flow capacity (rate may vary by installation)
- Drain outlet location can be adjusted to bypass joints, venting, or other in-floor obstacles
- Outlet adapter can be preattached to drain pipe for simplified installation and access to couplings
- Easy-clean domed hair strainer prevents clogs
- Subfloor brackets are height-adjustable to ensure the drain channel is mounted at the correct height during installation
- Removable tile guide/mud guard keeps channel clean of debris during installation and provides a straight edge to tile against
- Wide-top flange with protective film ensures excellent waterproof adhesion
- Includes subfloor mounting brackets, tile guide/mud guard, hair strainer, and threaded collar, along with straight pipe and threaded outlet adapters
- Can also be installed with KOHLER side-outlet adapter K-28987 (sold separately)
- Requires Kohler 2-1/2" x 36", 2-1/2" x 48", or 2-1/2" x 60" linear drain grate
Product details
- Material: Stainless Steel
- Product type: Shower Drains
- Style: Contemporary
- Application: Commercial, Hospitality, Residential
- Warranty: KOHLER® One-Year Limited Warranty
- Overall dimensions: Width: 4.65 in; Height: 3 in; Length: 61.42 in
- Finish: Not Applicable
Codes & standards
- Certifications / compliance: ASME
- ASME / CSA standard: ASME A112.18.2/CSA B125.2
