Kohler 76301-0 Highline Two-piece elongated toilet with concealed trapway, 1.28 gpf

With its clean, simple design and efficient performance, this KOHLER® Highline water-conserving toilet combines both style and function. The two-piece elongated toilet features a convenient chair-like height and elongated bowl for comfort, as well as a concealed trapway for a sleek look and easy cleaning. An innovative 1.28-gallon flush setting provides significant water savings of up to 16,500 gallons per year, compared to an old 3.5-gallon toilet, without sacrificing flushing power.

Features

• Two-piece design
• Concealed trapway and Clean Caps® low-profile bolt caps facilitate easier cleaning and enhance design
• Elongated bowl offers added room and comfort
• Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
• 1.28 gpf (4.8 lpf)

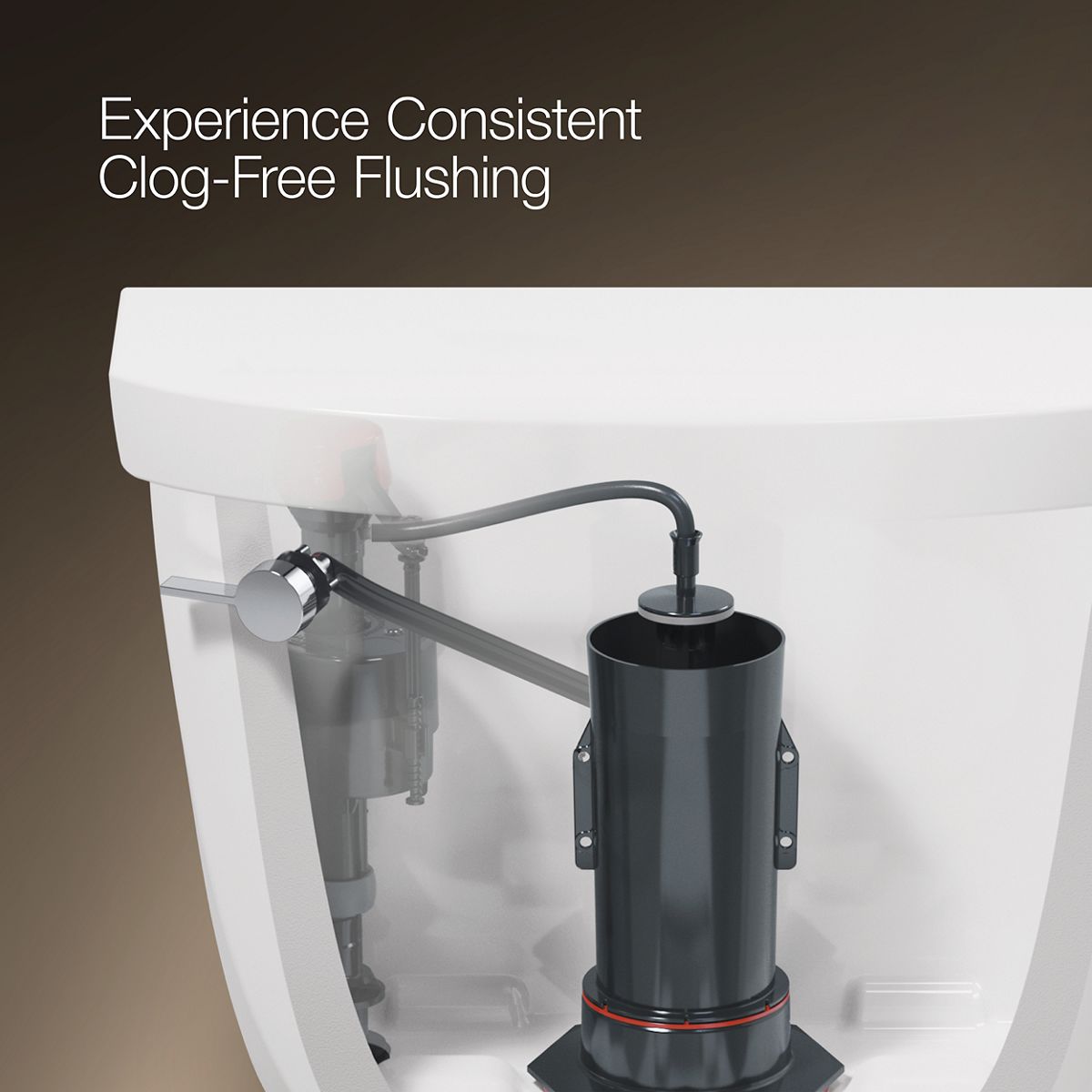

• KOHLERs canister flush valve harnesses the natural force of gravity and optimizes flushing performance
• Class Five® canister optimizes the flow out of the tank, harnessing gravity and the natural, powerful reducing cascade of water to increase the power and effectiveness of the flush
• Eligible for consumer rebates in some municipalities
• 2-1/8" (54 mm) fully glazed trapway
• Combination consists of toilet bowl and tank
• Left-hand trip lever

Product details

• Material: Vitreous China
• Product type: Toilets
• Style: Transitional
• Installation: Floor-mount
• Application: Residential
• Warranty: KOHLER® Toilets and Seats Limited Warranty
• Overall dimensions: Width: 18 in; Height: 31.25 in; Length: 29.75 in
• Finish: White

Codes & standards

• Certifications / compliance: ADA, ASME, CALGreen, CEC, CSA, WaterSense
• ASME / CSA standard: ASME A112.19.2/CSA B45.1
