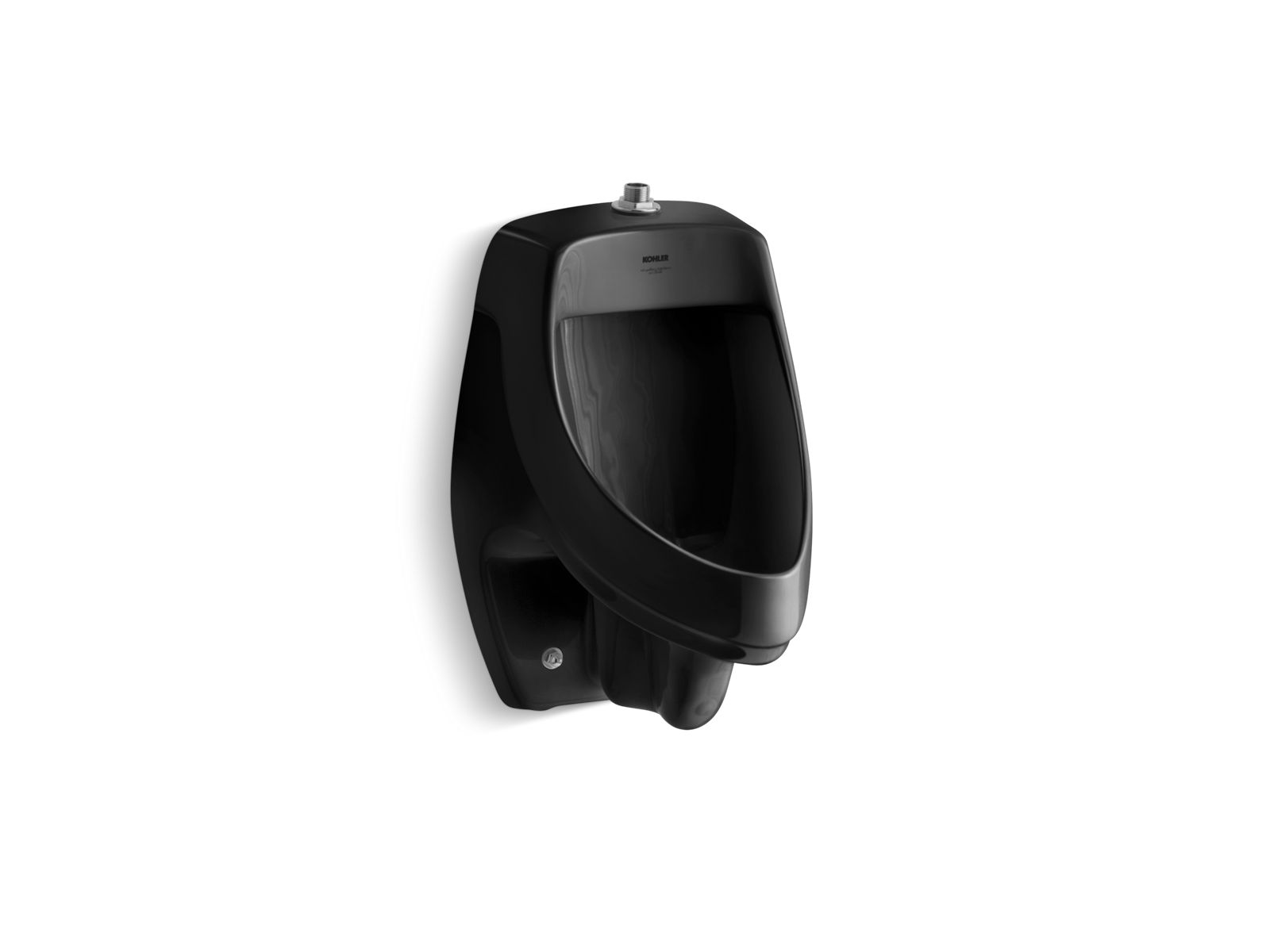

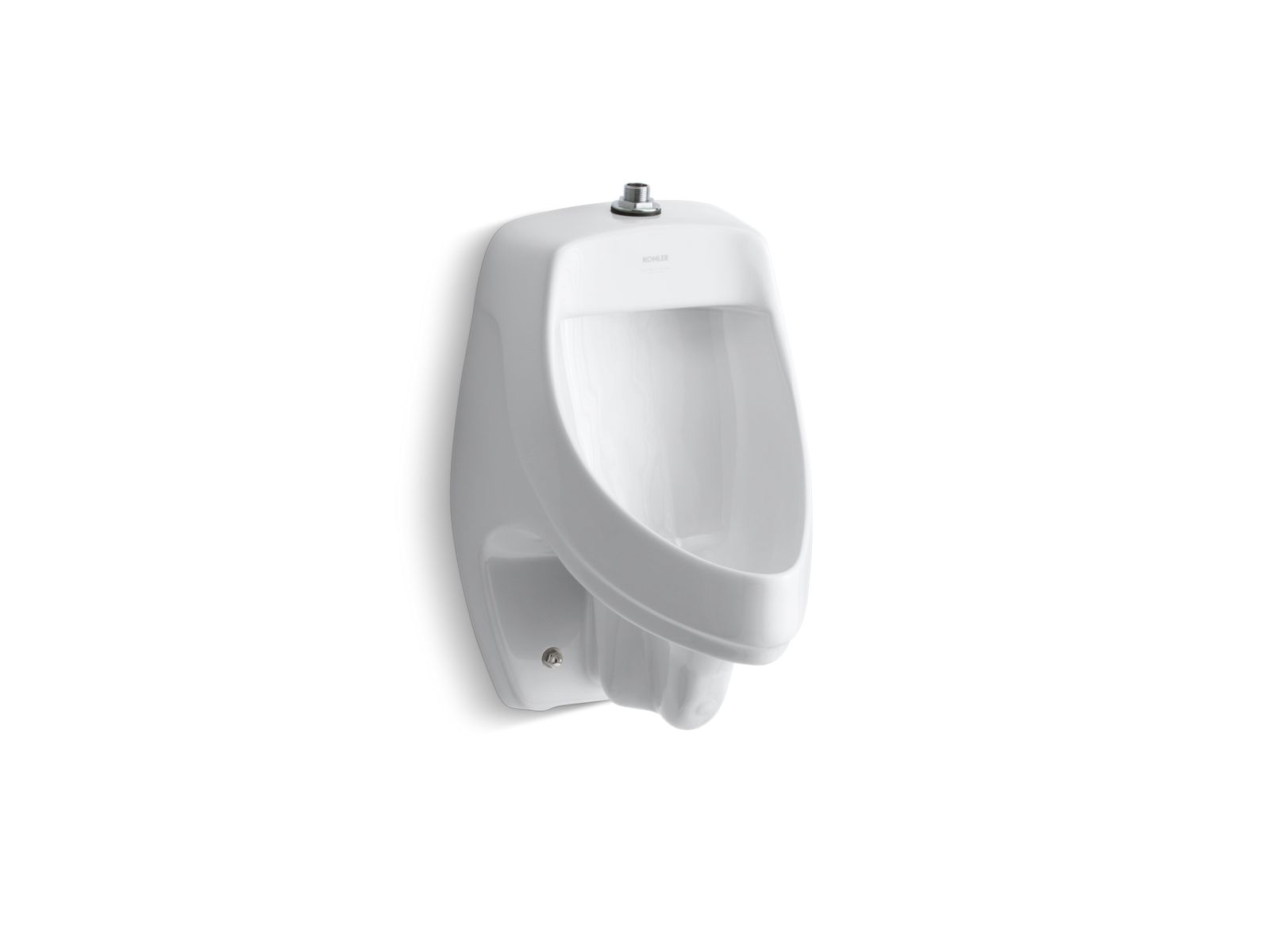

Kohler 5016-ET Dexter Siphon-jet wall-mount 0.5 or 1.0 gpf urinal with top spud

The straightforward design of the Dexter elongated urinal brings KOHLER styling and functionality to any application. The compact size is ideal for smaller public restrooms, and the back-wall geometry limits splashback for a cleaner user experience. This model features a 3/4" top spud.

Features

• Siphon jet
• 3/4" (19 mm) top spud
• 0.5 or 1.0 gpf (1.9 or 3.8 lpf) based on valve selected
• Includes inlet and outlet spuds and hangers
• Includes anti-backsplash wall
• 14-1/2" (368 mm) extended rim
• 0.5 or 1.0 gpf (1.9 or 3.8 lpf)

Product details

• Material: Vitreous China
• Product type: Urinals
• Style: Transitional
• Installation: Wall-mount
• Application: Commercial
• Warranty: KOHLER® One-Year Limited Warranty
• Overall dimensions: Width: 13.5 in; Height: 20.375 in; Length: 14.5 in
• Finish: White

Codes & standards

• Certifications / compliance: ADA, ANSI, ASME, WaterSense
• ASME / CSA standard: ASME A112.19.2/CSA B45.1

Resources

• Specification sheet
• Installation guide
• Parts diagram
• Owner’s manual
• KOHLER product page
