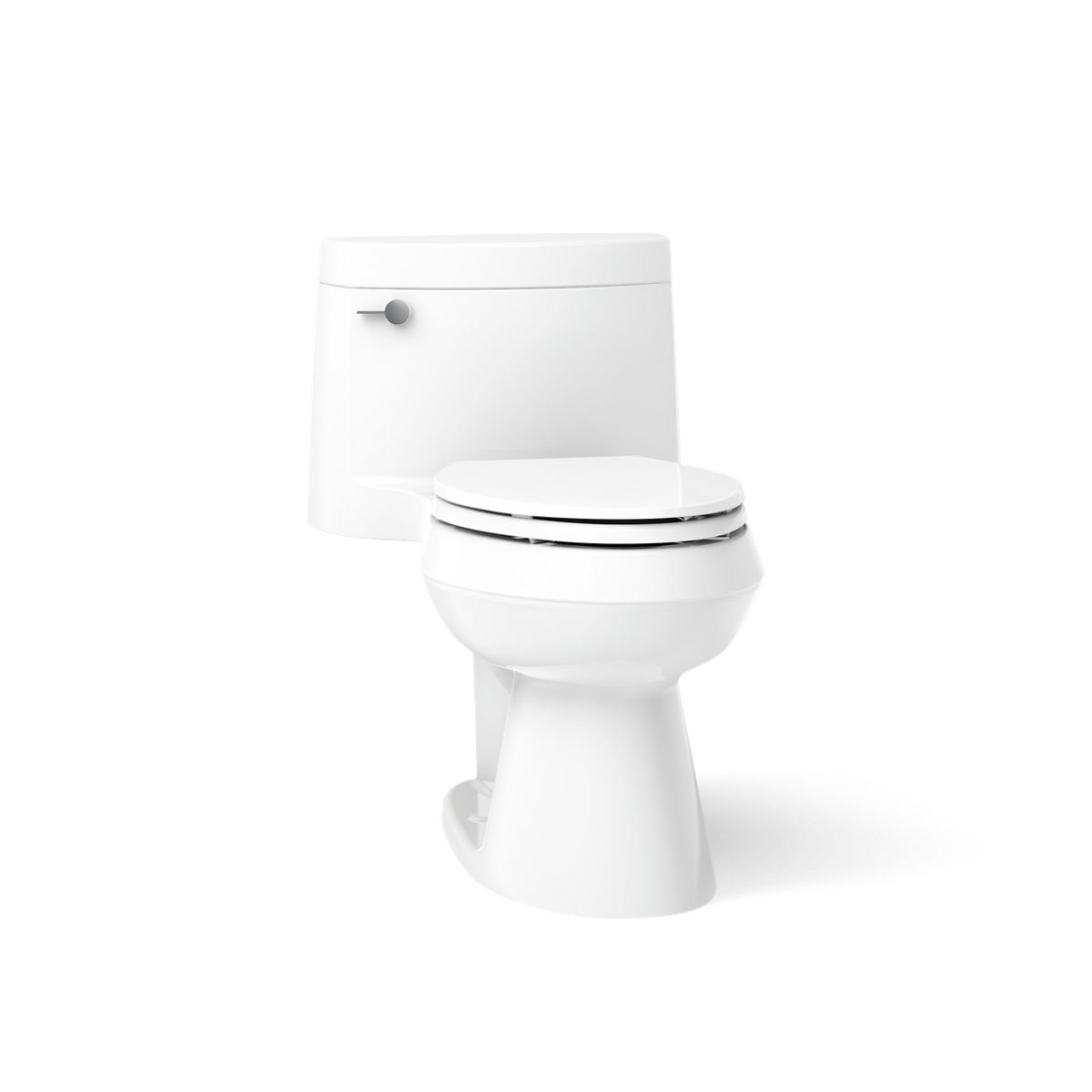

Kohler 3619-0 Cimarron One-piece elongated toilet with concealed trapway, 1.28 gpf

With its versatile, fresh design, the KOHLER® Cimarron toilet matches a range of contemporary and classic decors. This one-piece elongated toilet features a convenient chair-height and elongated bowl for comfortable use, as well as a concealed trapway for sleek looks and simple cleaning. A 1.28-gallon flush provides significant water savings of up to 16,500 gallons per year, compared to a 3.5-gallon toilet, without sacrificing performance. This toilet features innovative AquaPiston technology, a patented flush engine that delivers a fast, powerful, and virtually plug-free flush.

Features

• One-piece toilets integrate the tank and bowl into a seamless, easy-to-clean design
• Elongated bowl offers added room and comfort
• Comfort Height® feature offers chair-height seating that makes sitting down and standing up easier for most adults
• Concealed trapway and Clean Caps® low-profile bolt caps facilitate easier cleaning and enhance design
• Left-hand Polished Chrome trip lever
• Includes Quiet-Close™ seat
• Coordinates with other products in the Cimarron collection
• Easy-to-flush canister design requires less force to actuate than a 3" (76 mm) flapper, and has 90% less exposed seal material which resists conditions that cause wear, tear, shrinkage and swelling
• Eligible for consumer rebates in some municipalities
• 1.28 gpf (4.8 lpf)
• 2-1/8" (54 mm) fully glazed trapway

Product details

• Material: Vitreous China
• Product type: Toilets
• Style: Transitional
• Installation: Floor-mount
• Application: Residential
• Warranty: KOHLER® Toilets and Seats Limited Warranty
• Overall dimensions: Width: 19 in; Height: 28.625 in; Length: 29.625 in
• Finish: White

Codes & standards

• Certifications / compliance: ADA, ASME, CALGreen, CEC, CSA, WaterSense
• ASME / CSA standard: ASME A112.19.2/CSA B45.1

Resources

• Specification sheet
• Installation guide
• Parts diagram
• KOHLER product page
