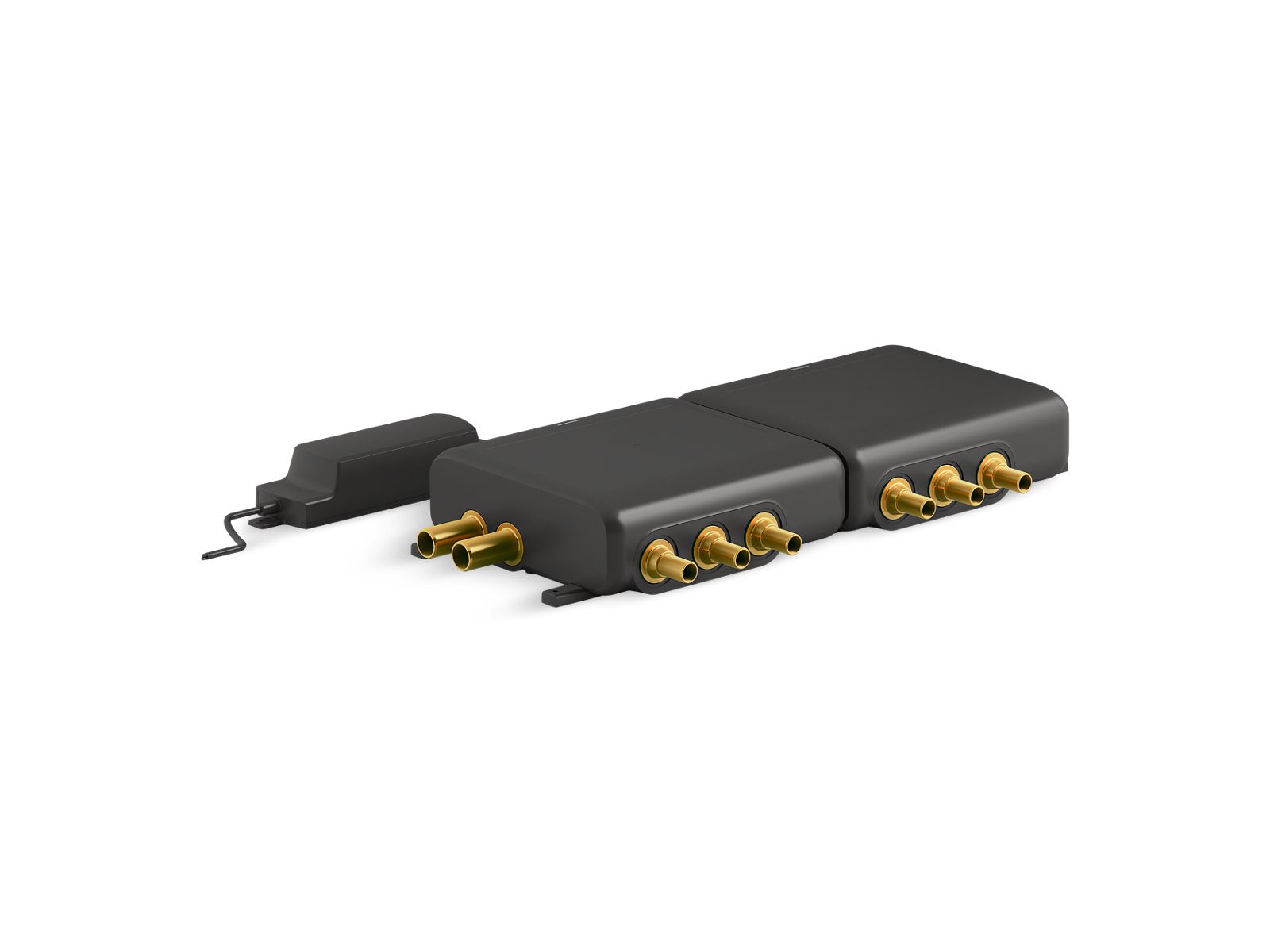

Kohler 28212-NA Anthem Six-port digital thermostatic valve

Digital thermostatic technology provides accurate, precise, and consistent temperature and flow control in your showering system. This precision-engineered, best-in-class KOHLER® Anthem digital thermostatic valve is designed for use with the Anthem digital control. Its easy plug-and-play design makes installation simple. With six independently controllable outlet ports, this valve is ideally suited for applications where six shower outlets are required, offering two different temperature and flow zones. Optional built-in eco mode lets you use just one outlet at a time to conserve water.

Features

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Built-in temperature and flow control
• Allows for two different temperature and flow zones in your shower
• Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
• Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Six independently controllable 1/2" outlets with brass tube connections
• 3/4" (19 mm) inlets with brass tube connections

Product details

• Material: Plastic
• Product type: Shower Valves
• Style: Transitional
• Installation: Recessed
• Application: Residential
• Warranty: KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty
• Overall dimensions: Width: 12.65 in; Height: 9.06 in; Length: 21.1 in
• Finish: Not Applicable

Codes & standards

• Certifications / compliance: ASME
• ASME / CSA standard: ASME A112.18.1/CSA B125.1
