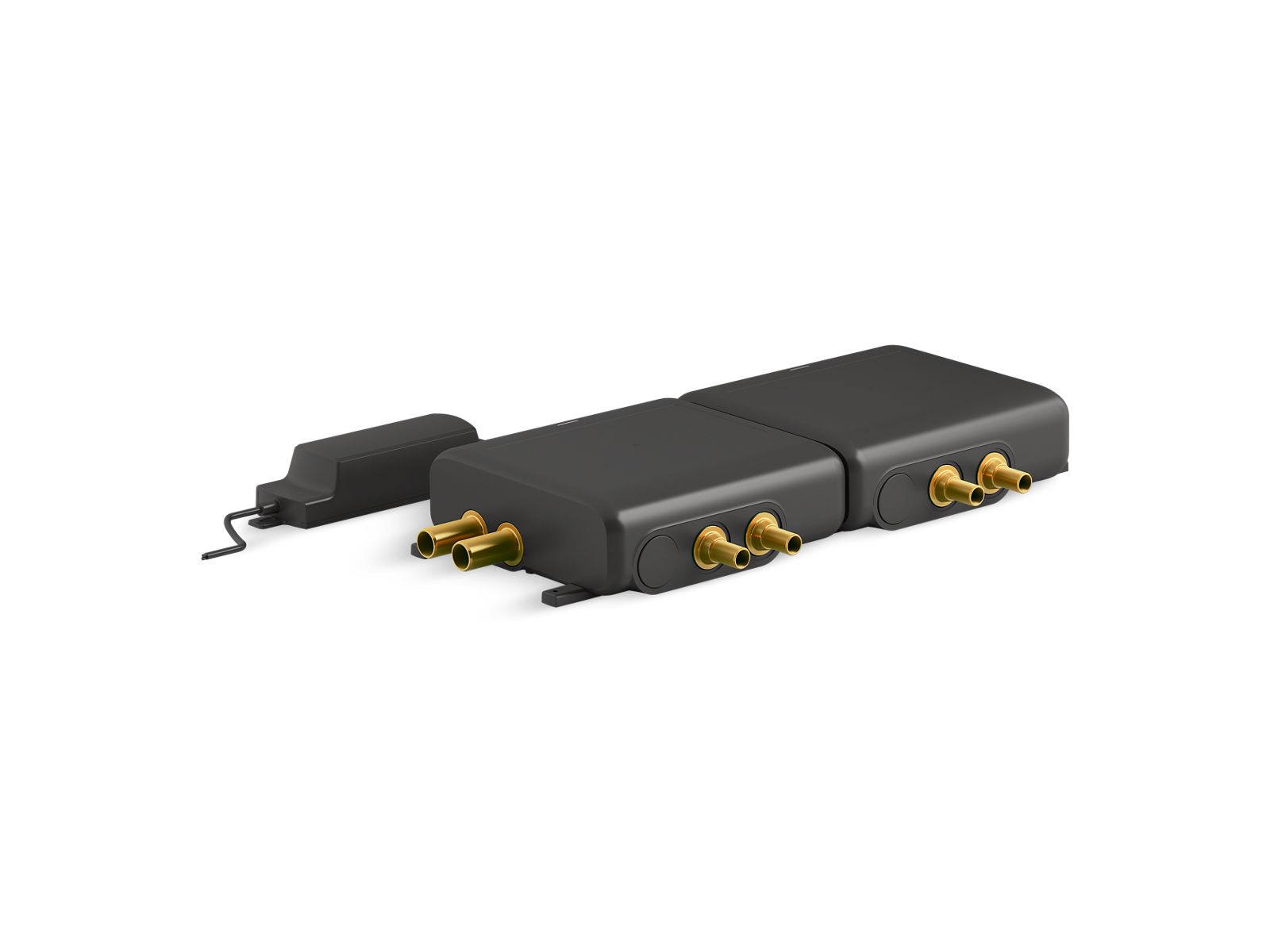

Kohler 28211-NA Anthem Four-port digital thermostatic valve

Experience precise control over your shower with KOHLER® Anthem four-port digital thermostatic valve. Engineered for use with the Anthem digital control, this advanced valve enables you to independently manage four shower outlets, creating two separate temperature and flow zones for a truly personalized shower. The digital thermostatic technology ensures consistent water temperature and flow, while the plug-and-play installation streamlines setup. Optional eco mode allows you to conserve water by activating just one outlet at a time.

Features

• Digitally controlled thermostatic mixing valve
• Antiscald protection
• Built-in temperature and flow control
• Allows for two different temperature and flow zones in your shower
• Selecting "low flow" mode on setup limits total flow to 1.75 gpm (6.6 lpm) for installations where water conservation or CEC-compliance is desired
• Use with the KOHLER Konnect® app to unlock additional Anthem system features, Kohler-developed experiences, and system updates
• Up to 22 gpm (83 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 9.5 gpm (36 lpm) from one outlet
• Four independently controllable 1/2" (13 mm) outlets with brass tube connections
• 3/4" (19 mm) inlets with brass tube connections

Product details

• Material: Plastic
• Product type: Shower Valves
• Style: Transitional
• Installation: Recessed
• Application: Residential
• Warranty: KOHLER® Electronic Faucets, Valves, and Controls Five-Year Limited Warranty
• Overall dimensions: Width: 10.69 in; Height: 8.26 in; Length: 18.27 in
• Finish: Not Applicable

Codes & standards

• Certifications / compliance: ASME
• ASME / CSA standard: ASME A112.18.1/CSA B125.1

Resources

• Specification sheet
• Installation guide
• Parts diagram
• Owner’s manual
• KOHLER product page
